PCI 255 is a self-adhesive masking tape specifically designed to protect various areas of printed circuit boards (PCBs), such as gold contacts, during high-temperature flow soldering processes. It is especially recommended for masking edge connectors or fingers during hot air leveling.
High Temp Masking Tape
High-Temp Masking Tape is for hot air levelling and high temperature soldering process.
- High Temperature
- Impregnated Crepe Paper
- Thickness: 5.6 mils
- Silicone Adhesive Base
Advantages
PCI 255 can be cleanly removed from the PCB after the soldering process, leaving no adhesive residue or contamination on the board surface

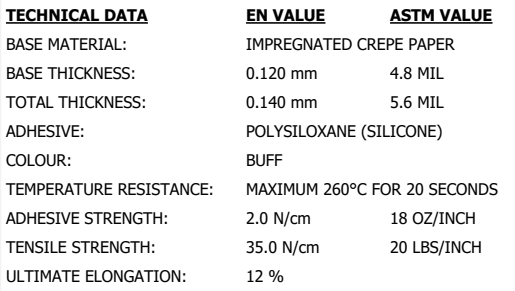

Technical Data
